| Photo | Mfr. Part # | Stock | Quantity | Datasheet | Packaging | Series | ProductStatus | DriverCircuitry | InputType | Voltage-Rated | VoltageRange | Frequency | Technology | OperatingMode | Duration | SoundPressureLevel(SPL) | Current-Supply | PortLocation | OperatingTemperature | ApprovalAgency | Ratings | IngressProtection | MountingType | Termination | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
MB-V09-301-Q(U)BUZZER PIEZO 35.81MM PNL MNT |
3410 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | AC | - | 130 ~ 220V | 2.9kHz | Piezo | Pulse, Fast | - | 95dB @ 220V, 61cm | 5 ~ 10mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
|

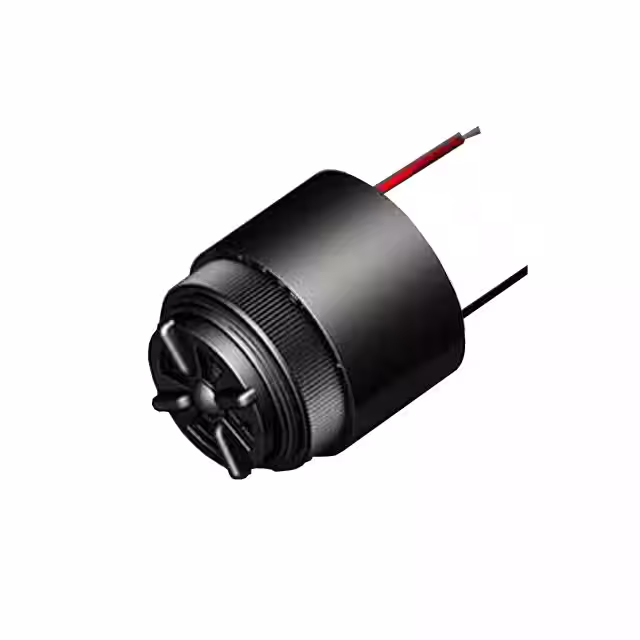

MW-V09-201-WBUZZER PIEZO 35.81MM PNL MNT |
998 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | AC | - | 30 ~ 120V | 2.2kHz ~ 2.9kHz | Piezo | Warble Fast | - | 95dB @ 120V, 61cm | 5 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410 Dia (35.81mm) |
.jpg)
|

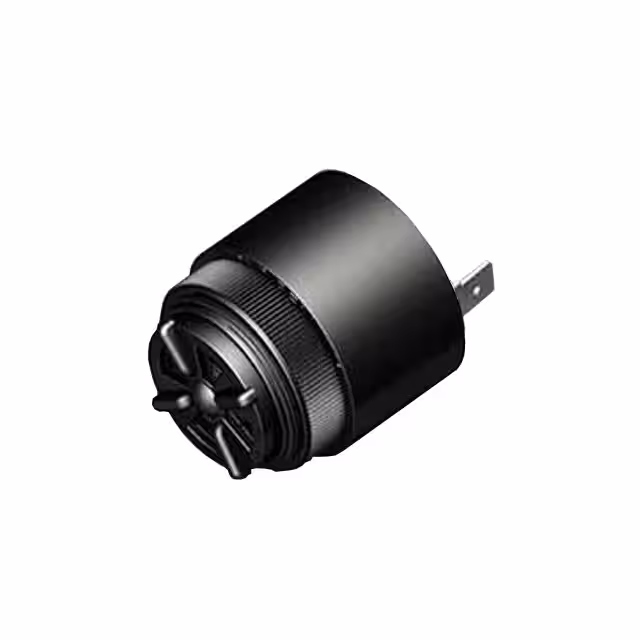

MB-V09-201-Q(M)BUZZER PIEZO 35.8MM PNL MNT |
975 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | AC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Medium | - | 95dB @ 120V, 61cm | 5 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.409 Dia (35.80mm) |
.jpg)
|
UB-09-628-W(S)BUZZER PIEZO 35.81MM PNL MNT |
3292 |
Add To CartInquiry Now |
Datasheet |
Bulk | Ultra | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.1kHz | Piezo | Pulse, Slow | - | 109dB @ 28V, 61cm | 20 ~ 50mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410 Dia (35.81mm) |
.jpg)
|

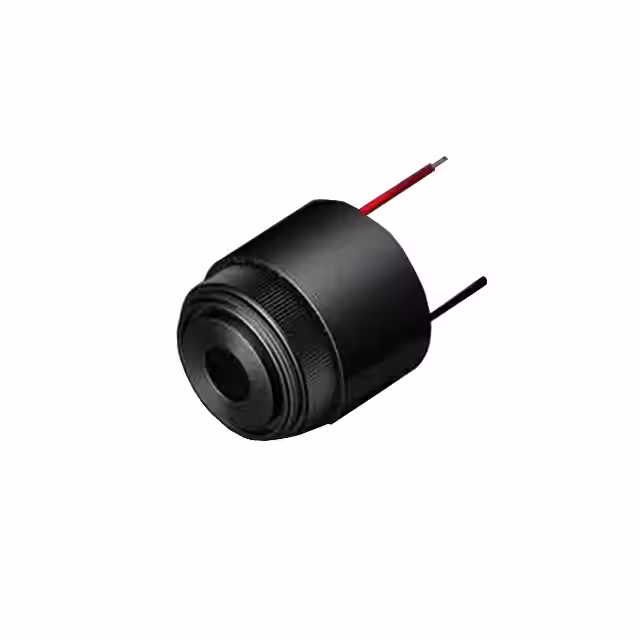

UW-09-515-W(F)BUZZER PIEZO 35.81MM PNL MNT |
2232 |
Add To CartInquiry Now |
Datasheet |
Bulk | Ultra | Active | Indicator, Internally Driven | DC | - | 5 ~ 15V | 2.1kHz | Piezo | Warble Fast | - | 109dB @ 15V, 61cm | 35 ~ 80mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410 Dia (35.81mm) |
.jpg)
|
UB-09-628-W(F)BUZZER PIEZO 35.81MM PNL MNT |
3283 |
Add To CartInquiry Now |
Datasheet |
Bulk | Ultra | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.1kHz | Piezo | Pulse, Fast | - | 109dB @ 28V, 61cm | 20 ~ 50mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410 Dia (35.81mm) |
.jpg)
|
UW-09-515-W(S)BUZZER PIEZO 35.81MM PNL MNT |
3721 |
Add To CartInquiry Now |
Datasheet |
Bulk | Ultra | Active | Indicator, Internally Driven | DC | - | 5 ~ 15V | 2.1kHz | Piezo | Warble, Slow | - | 109dB @ 15V, 61cm | 35 ~ 80mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410 Dia (35.81mm) |
.jpg)
|
UB-09-515-W(S)BUZZER PIEZO 35.81MM PNL MNT |
2753 |
Add To CartInquiry Now |
Datasheet |
Bulk | Ultra | Active | Indicator, Internally Driven | DC | - | 5 ~ 15V | 2.1kHz | Piezo | Pulse, Slow | - | 109dB @ 15V, 61cm | 30 ~ 60mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410 Dia (35.81mm) |
.jpg)
|
UB-09-515-W(F)BUZZER PIEZO 35.81MM PNL MNT |
2602 |
Add To CartInquiry Now |
Datasheet |
Bulk | Ultra | Active | Indicator, Internally Driven | DC | - | 5 ~ 15V | 2.1kHz | Piezo | Pulse, Fast | - | 109dB @ 15V, 61cm | 30 ~ 60mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410 Dia (35.81mm) |
.jpg)
|
UW-09-628-W(S)BUZZER PIEZO 35.81MM PNL MNT |
2753 |
Add To CartInquiry Now |
Datasheet |
Bulk | Ultra | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.1kHz | Piezo | Warble, Slow | - | 109dB @ 28V, 61cm | 20 ~ 50mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410 Dia (35.81mm) |
.jpg)
|
UW-09-628-W(F)BUZZER PIEZO 35.81MM PNL MNT |
3959 |
Add To CartInquiry Now |
Datasheet |
Bulk | Ultra | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.1kHz | Piezo | Warble Fast | - | 109dB @ 28V, 61cm | 20 ~ 50mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410 Dia (35.81mm) |
.jpg)
|
MB-V09-201-S(F)BUZZER PIEZO 35.8MM PNL MNT |
3536 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | AC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Fast | - | 95dB @ 120V, 61cm | 5 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.409 Dia (35.80mm) |
|
MW-V09-301-SBUZZER PIEZO 35.8MM PNL MNT |
3804 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | AC | - | 130 ~ 220V | 2.2kHz ~ 2.9kHz | Piezo | Warble Fast | - | 95dB @ 220V, 61cm | 5 ~ 10mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.409 Dia (35.80mm) |
.jpg)
|
MB-V09-301-S(F)BUZZER PIEZO 35.81MM PNL MNT |
2410 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | AC | - | 130 ~ 220V | 2.9kHz | Piezo | Pulse, Fast | - | 95dB @ 220V, 61cm | 5 ~ 10mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
.jpg)
|
MB-V09-201-W(F)BUZZER PIEZO 35.81MM PNL MNT |
2639 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | AC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Fast | - | 95dB @ 120V, 61cm | 5 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410 Dia (35.81mm) |
.jpg)
|
MB-V09-201-S(U)BUZZER PIEZO 35.81MM PNL MNT |
3964 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | AC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Fast | - | 95dB @ 120V, 61cm | 5 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
.jpg)
|
MB-V09-301-S(S)BUZZER PIEZO 35.81MM PNL MNT |
3904 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | AC | - | 130 ~ 220V | 2.9kHz | Piezo | Pulse, Slow | - | 95dB @ 220V, 61cm | 5 ~ 10mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
.jpg)
|
MB-V09-201-W(S)BUZZER PIEZO 35.81MM PNL MNT |
3627 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | AC | - | 30 ~ 120V | 2.9kHz | Piezo | Pulse, Slow | - | 95dB @ 120V, 61cm | 5 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410 Dia (35.81mm) |
.jpg)
|
MB-V09-301-W(S)BUZZER PIEZO 35.81MM PNL MNT |
2425 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | AC | - | 130 ~ 220V | 2.9kHz | Piezo | Pulse, Slow | - | 95dB @ 220V, 61cm | 5 ~ 10mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410 Dia (35.81mm) |
.jpg)
|
MB-V09-301-W(U)BUZZER PIEZO 35.81MM PNL MNT |
3242 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | AC | - | 130 ~ 220V | 2.9kHz | Piezo | Pulse, Fast | - | 95dB @ 220V, 61cm | 5 ~ 10mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410 Dia (35.81mm) |
