| Photo | Mfr. Part # | Stock | Quantity | Datasheet | Packaging | Series | ProductStatus | DriverCircuitry | InputType | Voltage-Rated | VoltageRange | Frequency | Technology | OperatingMode | Duration | SoundPressureLevel(SPL) | Current-Supply | PortLocation | OperatingTemperature | ApprovalAgency | Ratings | IngressProtection | MountingType | Termination | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
CH-09-525-S(S)BUZZER PIEZO 35.81MM PNL MNT |
3998 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.1kHz | Piezo | Chime, Single Shot | - | 93dB @ 25V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
.jpg)
|
CH-09-525-W(S)BUZZER PIEZO 35.81MM PNL MNT |
999 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.1kHz | Piezo | Chime, Single Shot | - | 93dB @ 25V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410 Dia (35.81mm) |
.jpg)
|
CH-09-525-S(M)BUZZER PIEZO 35.81MM PNL MNT |
995 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.9kHz | Piezo | Chime | - | 93dB @ 25V, 61cm | 5 ~ 25mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
|
XC-V09-201-QBUZZER PIEZO 35.8MM PNL MNT |
2828 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | AC | - | 30 ~ 120V | 2.9kHz | Piezo | Single Tone | - | 103dB @ 12V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.409 Dia (35.80mm) |
|
XC-V09-301-QBUZZER PIEZO 35.81MM PNL MNT |
2145 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | AC | - | 130 ~ 220V | 2.9kHz | Piezo | Single Tone | - | 103dB @ 220V, 61cm | 30 ~ 50mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
|
XC-V09-201-WBUZZER PIEZO 35.8MM PNL MNT |
2244 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | AC | - | 30 ~ 120V | 2.9kHz | Piezo | Single Tone | - | 103dB @ 12V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.409 Dia (35.80mm) |
|
XC-V09-301-WBUZZER PIEZO 35.81MM PNL MNT |
2784 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | AC | - | 130 ~ 220V | 2.9kHz | Piezo | Single Tone | - | 103dB @ 220V, 61cm | 30 ~ 50mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410 Dia (35.81mm) |
|
XC-V09-301-SBUZZER PIEZO 35.81MM PNL MNT |
998 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | AC | - | 130 ~ 220V | 2.9kHz | Piezo | Single Tone | - | 103dB @ 220V, 61cm | 30 ~ 50mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
|
XC-V09-201-SBUZZER PIEZO 35.81MM PNL MNT |
998 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | AC | - | 30 ~ 120V | 2.9kHz | Piezo | Single Tone | - | 103dB @ 12V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
|
CH-V09-525-QHSBUZZER PIEZO 35.8MM PNL MNT |
3187 |
Add To CartInquiry Now |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.1kHz | Piezo | Chime, Single Shot | - | 93dB @ 25V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.409 Dia (35.80mm) | |
.jpg)
|
CH-V09-525-Q(F)BUZZER PIEZO 35.8MM PNL MNT |
3583 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.9kHz | Piezo | Chime | - | 93dB @ 25V, 61cm | 5 ~ 25mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.409 Dia (35.80mm) |
.jpg)
|
CH-V09-525-Q(M)BUZZER PIEZO 35.81MM PNL MNT |
999 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.9kHz | Piezo | Chime | - | 93dB @ 25V, 61cm | 5 ~ 25mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
.jpg)
|

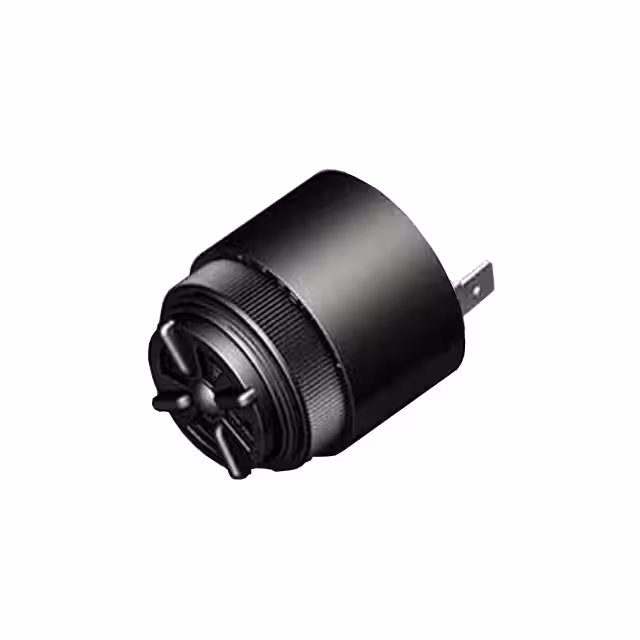

CH-V09-525-Q(S)BUZZER PIEZO 35.8MM PNL MNT |
998 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.1kHz | Piezo | Chime, Single Shot | - | 93dB @ 25V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.409 Dia (35.80mm) |
.jpg)
|
CH-V09-525-S(S)BUZZER PIEZO 35.8MM PNL MNT |
2355 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.1kHz | Piezo | Chime, Single Shot | - | 93dB @ 25V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.409 Dia (35.80mm) |
.jpg)
|
CH-V09-525-S(M)BUZZER PIEZO 35.8MM PNL MNT |
3024 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.9kHz | Piezo | Chime | - | 93dB @ 25V, 61cm | 5 ~ 25mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.409 Dia (35.80mm) |
.jpg)
|

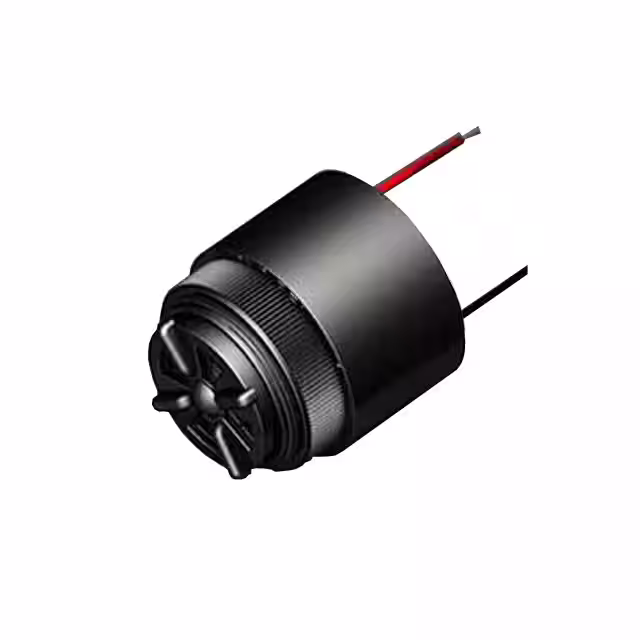

CH-V09-525-W(M)BUZZER PIEZO 35.81MM PNL MNT |
2055 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.9kHz | Piezo | Chime | - | 93dB @ 25V, 61cm | 5 ~ 25mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410 Dia (35.81mm) |
.jpg)
|
CH-V09-525-W(F)BUZZER PIEZO 35.81MM PNL MNT |
3203 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.9kHz | Piezo | Chime | - | 93dB @ 25V, 61cm | 5 ~ 25mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410 Dia (35.81mm) |
.jpg)
|
CH-V09-525-S(F)BUZZER PIEZO 35.81MM PNL MNT |
3851 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.9kHz | Piezo | Chime | - | 93dB @ 25V, 61cm | 5 ~ 25mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
.jpg)
|
CH-V09-525-W(S)BUZZER PIEZO 35.81MM PNL MNT |
999 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 25V | 2.1kHz | Piezo | Chime, Single Shot | - | 93dB @ 25V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410 Dia (35.81mm) |
.jpg)
|

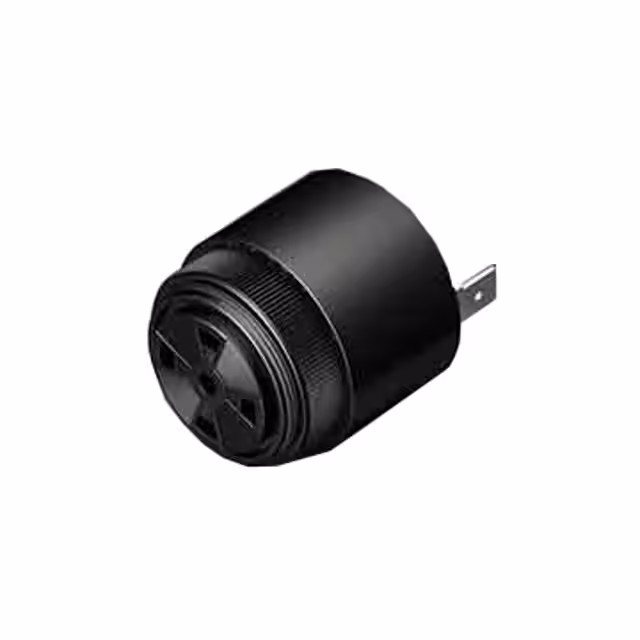

XB-09-301-Q(F)BUZZER PIEZO 35.81MM PNL MNT |
3646 |
Add To CartInquiry Now |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | AC | - | 130 ~ 220V | 2.9kHz | Piezo | Pulse, Fast | - | 103dB @ 220V, 61cm | 10 ~ 45mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
