| Photo | Mfr. Part # | Stock | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

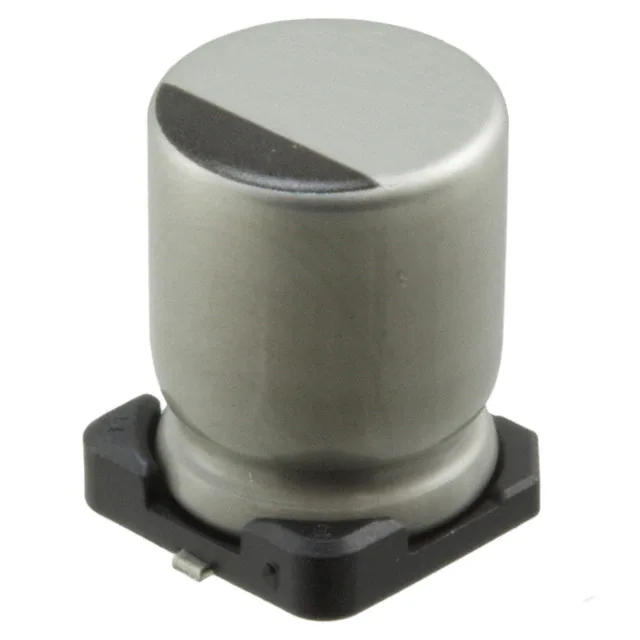

UWD1C471MCL1GSCAP ALUM 470UF 20% 16V SMD |
2895 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWD | Active | 470 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 225 mA @ 120 Hz | 450 mA @ 100 kHz | 170 mOhms | - | 0.315 Dia (8.00mm) | 0.394 (10.00mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
UUB1C221MNL1GSCAP ALUM 220UF 20% 16V SMD |
2501 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUB | Active | 220 µF | ±20% | 16 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | - | - | General Purpose | 102 mA @ 120 Hz | 153 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.394 (10.00mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
UUL1A101MCL1GSCAP ALUM 100UF 20% 10V SMD |
3821 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUL | Active | 100 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 81 mA @ 120 Hz | 121.5 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EEE-TPC101XAPCAP ALUM 100UF 20% 16V SMD |
3603 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TP | Active | 100 µF | ±20% | 16 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 128.1 mA @ 120 Hz | 197 mA @ 100 kHz | - | - | 0.248 Dia (6.30mm) | 0.303 (7.70mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
EEE-HA0J331APCAP ALUM 330UF 20% 6.3V SMD |
2552 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HA | Not For New Designs | 330 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 230 mA @ 120 Hz | 391 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEE-HAC221UAPCAP ALUM 220UF 20% 16V SMD |
3949 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HA | Active | 220 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 150 mA @ 120 Hz | 255 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-HAC331UAPCAP ALUM 330UF 20% 16V SMD |
2090 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HA | Active | 330 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 170 mA @ 120 Hz | 289 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-HAH470UAPCAP ALUM 47UF 20% 50V SMD |
2601 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HA | Active | 47 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 95 mA @ 120 Hz | 161.5 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-HAJ471UAPCAP ALUM 470UF 20% 6.3V SMD |
2215 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HA | Active | 470 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 300 mA @ 120 Hz | 510 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-HAV101UAPCAP ALUM 100UF 20% 35V SMD |
2737 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HA | Active | 100 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 120 mA @ 120 Hz | 204 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
ULV2W7R5MNL1GSCAP ALUM 7.5UF 20% 450V SMD |
3879 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | ULV | Active | 7.5 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 45 mA @ 120 Hz | - | - | - | 0.394 Dia (10.00mm) | 0.571 (14.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
ULV2H4R7MNL1GSCAP ALUM 4.7UF 20% 500V SMD |
3188 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | ULV | Active | 4.7 µF | ±20% | 500 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 45 mA @ 120 Hz | 72 mA @ 100 kHz | - | - | 0.394 Dia (10.00mm) | 0.571 (14.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
UWG1E680MNL1GSCAP ALUM 68UF 20% 25V SMD |
2300 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWG | Active | 68 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | AEC-Q200 | General Purpose | 225 mA @ 120 Hz | 450 mA @ 100 kHz | 300 mOhms | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
UVR1C472MHD1TNCAP ALUM 4700UF 20% 16V RADIAL |
726 |
Add To CartInquiry Now |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UVR | Not For New Designs | 4700 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 2.415 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
UUB1H470MNL1GSCAP ALUM 47UF 20% 50V SMD |
3938 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUB | Active | 47 µF | ±20% | 50 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 58 mA @ 120 Hz | 87 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.413 (10.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
ULR2H5R6MNL1GSCAP ALUM 5.6UF 20% 500V SMD |
2789 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | ULR | Active | 5.6 µF | ±20% | 500 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 40 mA @ 120 Hz | - | - | - | 0.394 Dia (10.00mm) | 0.571 (14.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
ULR2G120MNL1GSCAP ALUM 12UF 20% 400V SMD |
2130 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | ULR | Active | 12 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 55 mA @ 120 Hz | 88 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.571 (14.50mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
UWG1A221MNL1GSCAP ALUM 220UF 20% 10V SMD |
2286 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWG | Active | 220 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | AEC-Q200 | General Purpose | 225 mA @ 120 Hz | 450 mA @ 100 kHz | 300 mOhms | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
UWG1E101MNL1GSCAP ALUM 100UF 20% 25V SMD |
2214 |
Add To CartInquiry Now |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UWG | Active | 100 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | AEC-Q200 | General Purpose | 225 mA @ 120 Hz | 450 mA @ 100 kHz | 300 mOhms | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
35ZL330MEFC10X16CAP ALUM 330UF 20% 35V RADIAL |
426 |
Add To CartInquiry Now |
Datasheet |
Bulk | ZL | Active | 330 µF | ±20% | 35 V | - | 4000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 715 mA @ 120 Hz | 1.43 A @ 100 kHz | 38 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
