| Photo | Mfr. Part # | Stock | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8001-05-001RELAY REED SPST 500MA 5V |
2808 |
Add To CartInquiry Now |
Datasheet |
Tube | 8000 | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
|
8002-05-10RELAY REED DPST 500MA 5V |
3191 |
Add To CartInquiry Now |
Datasheet |
Tube | 8000 | Obsolete | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
|
8041-05-001RELAY REED SPDT 250MA 5V |
3530 |
Add To CartInquiry Now |
Datasheet |
Tube | 8000 | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.5 VDC | 1 ms | 1 ms | -20°C ~ 85°C |
|
8L01-12-101RELAY REED SPST 500MA 12V |
2077 |
Add To CartInquiry Now |
Datasheet |
Tube | 8L | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
|
8L01-24-101RELAY REED SPST 500MA 24V |
3795 |
Add To CartInquiry Now |
Datasheet |
Tube | 8L | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 11 mA | Non Latching | Electrostatic Shield | PC Pin | - | 19.2 VDC | 2 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
HE421A0550RELAY REED SPST 500MA 5V |
2743 |
Add To CartInquiry Now |
Datasheet |
Tube | 400 | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 20.8 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|
9081-05-00RELAY REED SPST 500MA 5V |
2330 |
Add To CartInquiry Now |
Datasheet |
Bulk | 9000, Spartan | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C |
|
|
9081-12-00RELAY REED SPST 500MA 12V |
3421 |
Add To CartInquiry Now |
Datasheet |
Bulk | 9000, Spartan | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C |
|
|
9081-24-00RELAY REED SPST 500MA 24V |
2114 |
Add To CartInquiry Now |
Datasheet |
Bulk | 9000, Spartan | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C |
|
|
8501-0005RELAY REED SPDT 24V |
2310 |
Add To CartInquiry Now |
Tube | 8500 | Obsolete | - | 24VDC | SPDT (1 Form C) | - | - | - | Non Latching | - | - | - | - | - | - | - | - | |
|
|
HE221A0550RELAY REED SPST 500MA 5V |
3206 |
Add To CartInquiry Now |
Datasheet |
Bulk | 200 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 35.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.5 VDC | 0.28 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|
|
HE221A1250RELAY REED SPST 500MA 12V |
3099 |
Add To CartInquiry Now |
Datasheet |
Bulk | 200 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 14 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 8.4 VDC | 0.7 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|
|
HE221A2450RELAY REED SPST 500MA 24V |
3878 |
Add To CartInquiry Now |
Datasheet |
Bulk | 200 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 7.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 16.8 VDC | 1.4 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|
|
HE421A1250RELAY REED SPST 500MA 12V |
2091 |
Add To CartInquiry Now |
Datasheet |
Tube | 400 | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 12.5 mA | Non Latching | - | PC Pin | - | 8.5 VDC | 1 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|
|
HE421A2450RELAY REED SPST 500MA 24V |
2823 |
Add To CartInquiry Now |
Datasheet |
Tube | 400 | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 6.3 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|

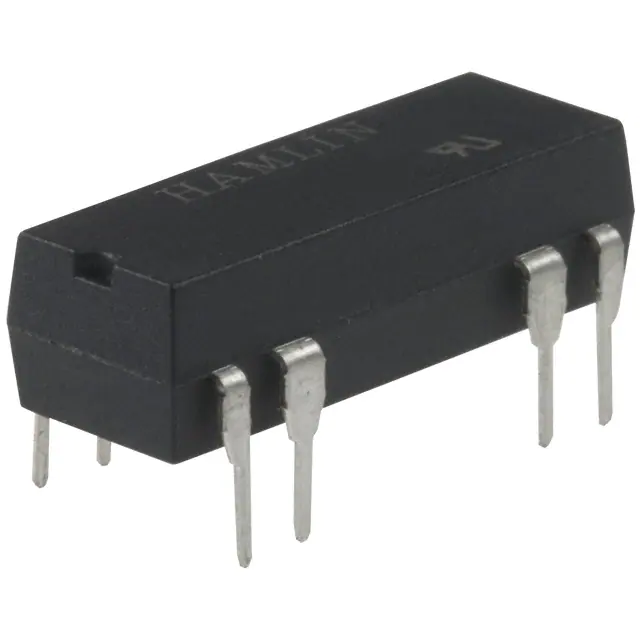

HE721A0515RELAY REED SPST 500MA 5V |
3843 |
Add To CartInquiry Now |
Datasheet |
Tube | 700 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|
|
HE721A1215RELAY REED SPST 500MA 12V |
2745 |
Add To CartInquiry Now |
Datasheet |
Tube | 700 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 8 VDC | 1 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|
|
HE721A2415RELAY REED SPST 500MA 24V |
2195 |
Add To CartInquiry Now |
Datasheet |
Tube | 700 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 11.1 mA | Non Latching | - | PC Pin | - | 16 VDC | 2 VDC | 1 ms | 1 ms | -40°C ~ 85°C |
|
BT24-2A66RELAY REED DPST 500MA 24V |
2741 |
Add To CartInquiry Now |
Datasheet |
Tube | BT | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 1.2 mA | Non Latching | - | PC Pin | - | 18 VDC | 3.5 VDC | 0.5 ms | 0.1 ms | -20°C ~ 85°C |
|

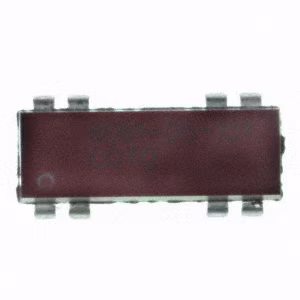

8061-05-101RELAY REED SPDT 250MA 5V |
3120 |
Add To CartInquiry Now |
Datasheet |
Tube | 8000 | Obsolete | Surface Mount | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | Electrostatic Shield | J Lead | - | 3.8 VDC | 0.5 VDC | 1 ms | 1 ms | -20°C ~ 85°C |
