| Photo | Mfr. Part # | Stock | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

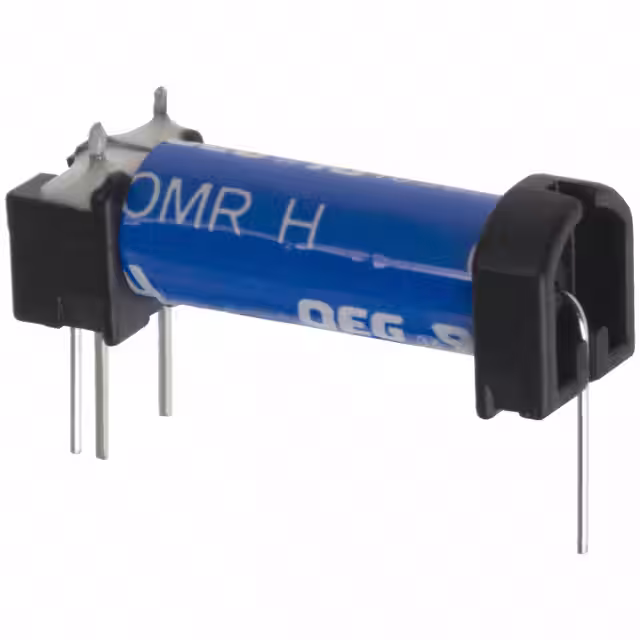

OMR-112H,V000RELAY REED SPST 500MA 12V |
2838 |
Add To CartInquiry Now |
Datasheet |
Bulk | OMR, OEG | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 120VAC, 60VDC - Max | 11.4 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.2 VDC | 1 ms | 0.5 ms | -30°C ~ 70°C |
|

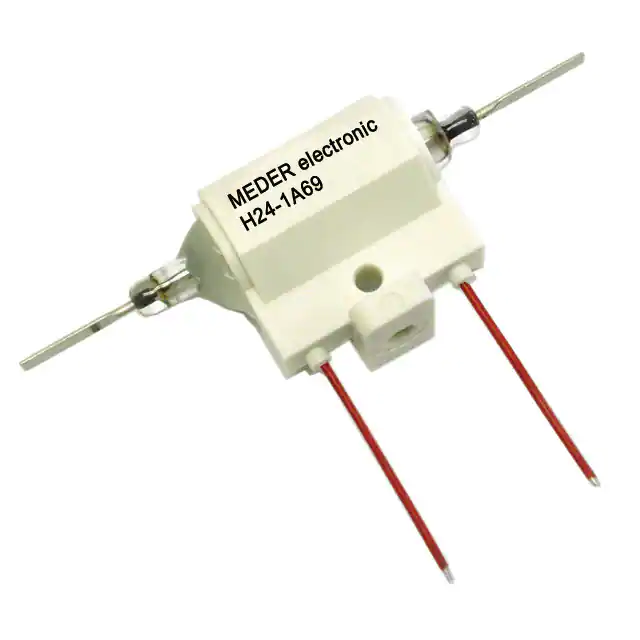

H24-1A69RELAY REED SPST 3A 24V |
3667 |
Add To CartInquiry Now |
Datasheet |
Bulk | H | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 3 A | 10000VAC, 10000VDC - Max | 34.3 mA | Non Latching | - | Wire Leads | - | 16.8 VDC | 3.6 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C |
|
JWS-117-8RELAY REED SPST 500MA 12V |
3820 |
Add To CartInquiry Now |
Datasheet |
Tube | JWS | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 22.7 mA | Non Latching | Diode | PC Pin | - | 9.6 VDC | 1 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C |
|
|
JWS-117-18RELAY REED SPST 500MA 12V |
2100 |
Add To CartInquiry Now |
Datasheet |
Tube | JWS | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 100VDC - Max | 6.5 mA | Non Latching | Diode | PC Pin | - | 9.6 VDC | 1 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C |
|
JWD-171-20RELAY REED SPST 500MA 24V |
3041 |
Add To CartInquiry Now |
Datasheet |
Tube | JWD | Discontinued at Mosen | Through Hole | 24VDC | SPST-NC (1 Form B) | 500 mA | 100VDC - Max | 10.9 mA | Non Latching | Diode | PC Pin | - | 19.2 VDC | 2 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C |
|
HGWM51111T00RELAY REED SPDT 2A 24V |
2903 |
Add To CartInquiry Now |
Bulk | HG | Discontinued at Mosen | Through Hole | 24VDC | SPDT (1 Form C) | 2 A | 500VAC, 500VDC - Max | - | - | - | PC Pin | - | - | - | - | - | - | |
|
|
HM24-1B83-02RELAY REED SPST 3A 24V |
3395 |
Add To CartInquiry Now |
Datasheet |
Bulk | HM | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 3 A | 7500VAC, 7500VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C |
|
|
9007-12-11RELAY REED SPST 500MA 12V |
2264 |
Add To CartInquiry Now |
Datasheet |
Tube | 9000, Spartan | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C |
|
|
8002-12-10RELAY REED DPST 500MA 12V |
3134 |
Add To CartInquiry Now |
Datasheet |
Tube | 8000 | Obsolete | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
|
8021-12-01RELAY REED SPST 500MA 12V |
2878 |
Add To CartInquiry Now |
Datasheet |
Tube | 8000 | Obsolete | Through Hole | 12VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 1 ms | -20°C ~ 85°C |
|
|
8021-05-01RELAY REED SPST 500MA 5V |
2990 |
Add To CartInquiry Now |
Datasheet |
Tube | 8000 | Obsolete | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 1 ms | -20°C ~ 85°C |
|
|
8002-05-01RELAY REED DPST 500MA 5V |
2316 |
Add To CartInquiry Now |
Datasheet |
Tube | 8000 | Obsolete | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 1 ms | -20°C ~ 85°C |
|
|
8002-12-01RELAY REED DPST 500MA 12V |
2610 |
Add To CartInquiry Now |
Datasheet |
Tube | 8000 | Obsolete | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 1 ms | -20°C ~ 85°C |
|
|
8002-05-11RELAY REED DPST 500MA 5V |
2101 |
Add To CartInquiry Now |
Datasheet |
Tube | 8000 | Obsolete | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 1 ms | -20°C ~ 85°C |
|
|
8002-12-11RELAY REED DPST 500MA 12V |
2677 |
Add To CartInquiry Now |
Datasheet |
Tube | 8000 | Obsolete | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 1 ms | -20°C ~ 85°C |
|
|
8021-05-11RELAY REED SPST 500MA 5V |
3082 |
Add To CartInquiry Now |
Datasheet |
Tube | 8000 | Obsolete | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 1 ms | -20°C ~ 85°C |
|
|
9201-12-30RELAY REED SPST 500MA 12V |
3376 |
Add To CartInquiry Now |
Datasheet |
Tube | 9200 | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 18.5 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 0.4 ms | 0.1 ms | -20°C ~ 85°C |
|
|
9201-05-30RELAY REED SPST 500MA 5V |
3636 |
Add To CartInquiry Now |
Datasheet |
Tube | 9200 | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 20 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | -20°C ~ 85°C |
|
|
9201-12-10RELAY REED SPST 500MA 12V |
2053 |
Add To CartInquiry Now |
Datasheet |
Tube | 9200 | Obsolete | Surface Mount | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 18.5 mA | Non Latching | - | Axial | Sealed - Hermetically | 9 VDC | 1 VDC | 0.4 ms | 0.1 ms | -20°C ~ 85°C |
|
9401-12-30RELAY REED SPST 500MA 12V |
3358 |
Add To CartInquiry Now |
Datasheet |
Tube | 9400 | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 14.5 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.4 ms | 0.2 ms | -20°C ~ 85°C |
